Multi Camera Systems

Eliminating vehicle blind spots, preventing accidents

Multi Camera Systems

Designed for the future of connected vehicle technology

Multiple cameras can be installed in any configuration, standard systems utilising 5 cameras; front, rear, near and offside, and either an in cab or load viewing. An in‐cab monitor with a live view of the rear and nearside cameras are installed for the sole purpose of increasing the driver’s visual awareness around the vehicle.

The images from the rear camera appear when the reverse gear is engaged and from the nearside camera when the left hand indicator is activated. Load camera is selectable from a dash mounted switch. The rear camera overrides the nearside and load cameras.

Mobile Digital Video Recorders

MDVR’s are state of the art tough pieces of kit. These devices range from 4 to 24 channel’s designed for vehicle surveillance, monitoring and above all capturing an incident. Some of our models are high performance, ruggedised, digital video recorders specifically designed for in-vehicle recording, allowing fleet managers to record and stream live footage from a vehicle.

The technology captures, records and manages high definition video combined with GPS locating technology, 3/4G network and wireless upload.

Many more features are standed in the Spillard range of digital recorders such as:

Full HD footage
1920 x 10180 resolution

Easy maintenance

Integrated option of
3G/4G for remote access

Cloud-platform for live streaming of images

GPS for location tracking

Internal WiFi

Cameras

Spillard’s range of cameras really has something for all vehicle types and industries. From rear-view/reversing camera to side-view and wide eye cameras this technology really can see what you can’t and is captured in real time with use of the recorders.

The range of camera’s are tough, have adjustable mounting, weatherproof and some even have infrared night vision. With this technology you can be sure that your field of vision is completely covered at all times allowing you to operate your vehicle night and day, what-ever the weather and with peace of mind.

The range of Spillard cameras have a rating of IP69K which means they are ideal for facilities where hygiene and cleanliness are critical, as they are proven to be durable and resistant against water, chemicals, high pressure, and high temperatures associated with demanding cleaning and safety measures.

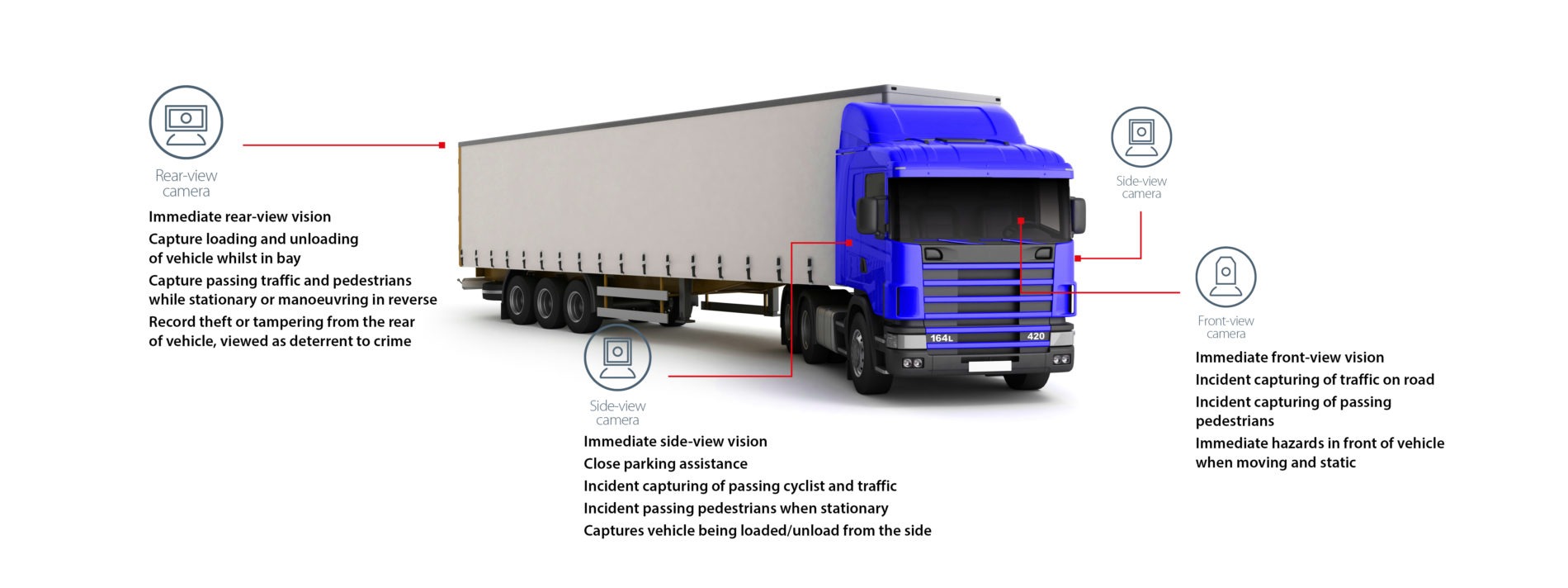

Multi Camera Systems - Multi Camera System Diagram web

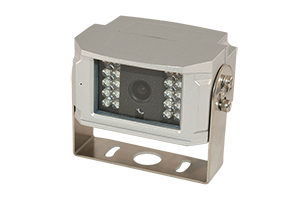

Rear-View Cameras

Obviously a very common manoeuvre when operating heavy vehicles whether its in the mining industry, HGV deliveries or simply reversing a bus.

The range of cameras will suit any vehicle type, offering heavy duty, dual lens or just a standard reversing camera.

1/3” colour CCD
95°,120° and 180° wide-viewing angle available
0Lux (LED on)
IR distance of 10 metres
IP69K rating
Wide adjustable sun visor

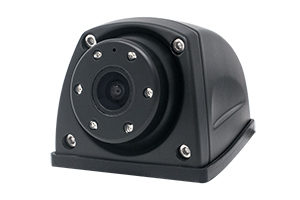

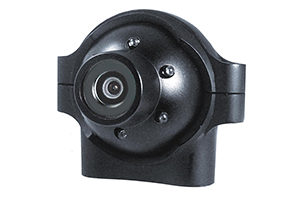

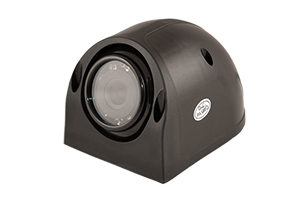

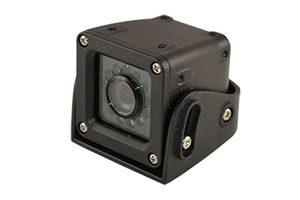

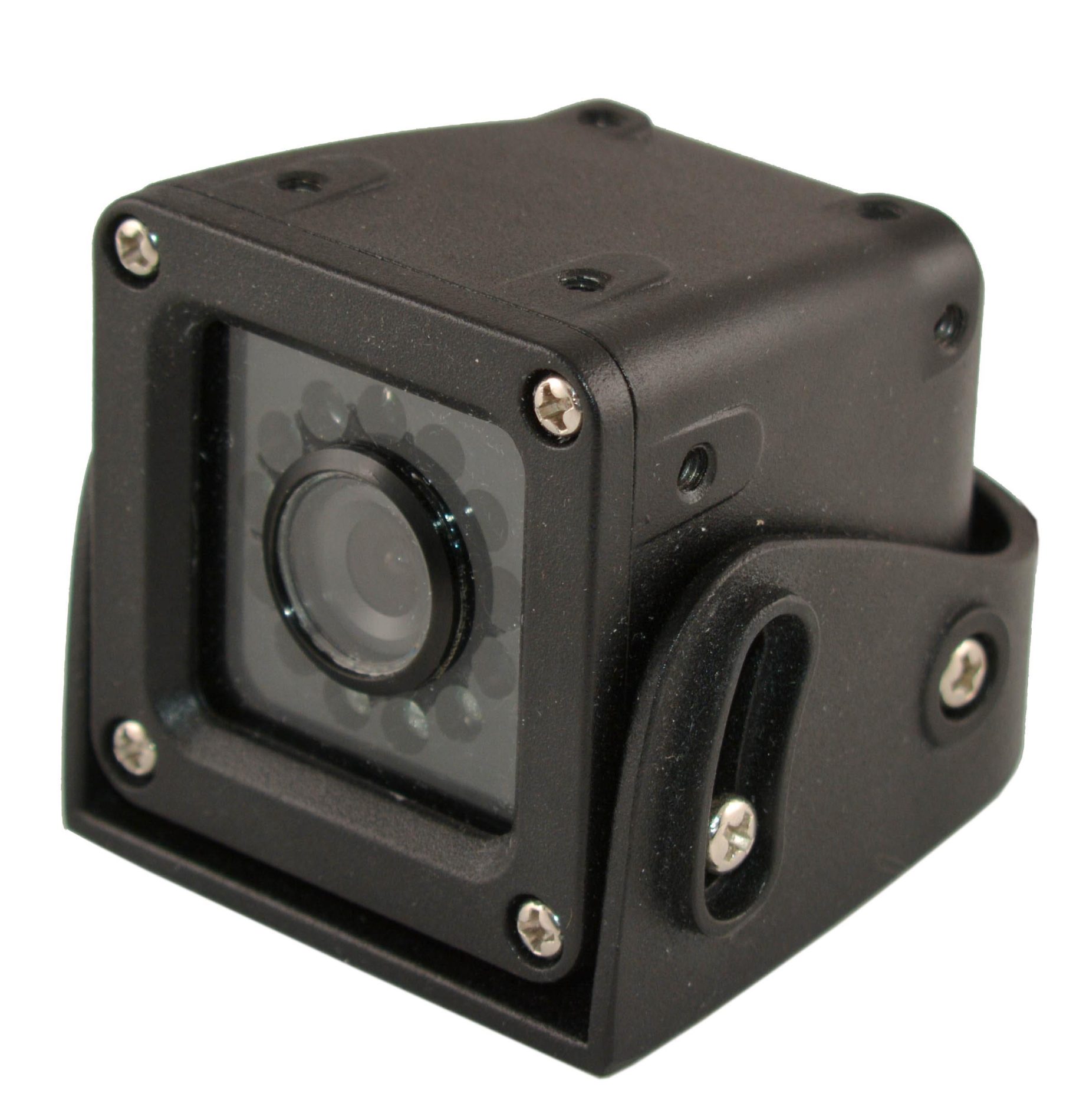

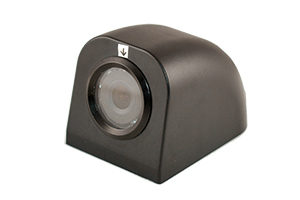

Side-View Cameras

These cameras are ideal for viewing traffic or objects that appear up along side your vehicle. It could be passing cars on a motorways at speed or if your parallel parking in a busy depot for both HGV and LGV.

These cameras give you superior vision allowing you to manoeuvre in tight spaces or to capture side collisions at speed, both situations give you that extra view/angle of avoiding or capturing something whilst in operation.

1/3” colour CMOS
AHD
120°, 150° wide-viewing angle
IP69K rated
Flexible mounting
Angle adjustment options
Infrared night vision available
IR distance of 5 or 10 metres
Some models have a choice of black or white product colour
Compact styling ideal for wing mirrors, trailers, and wide loads

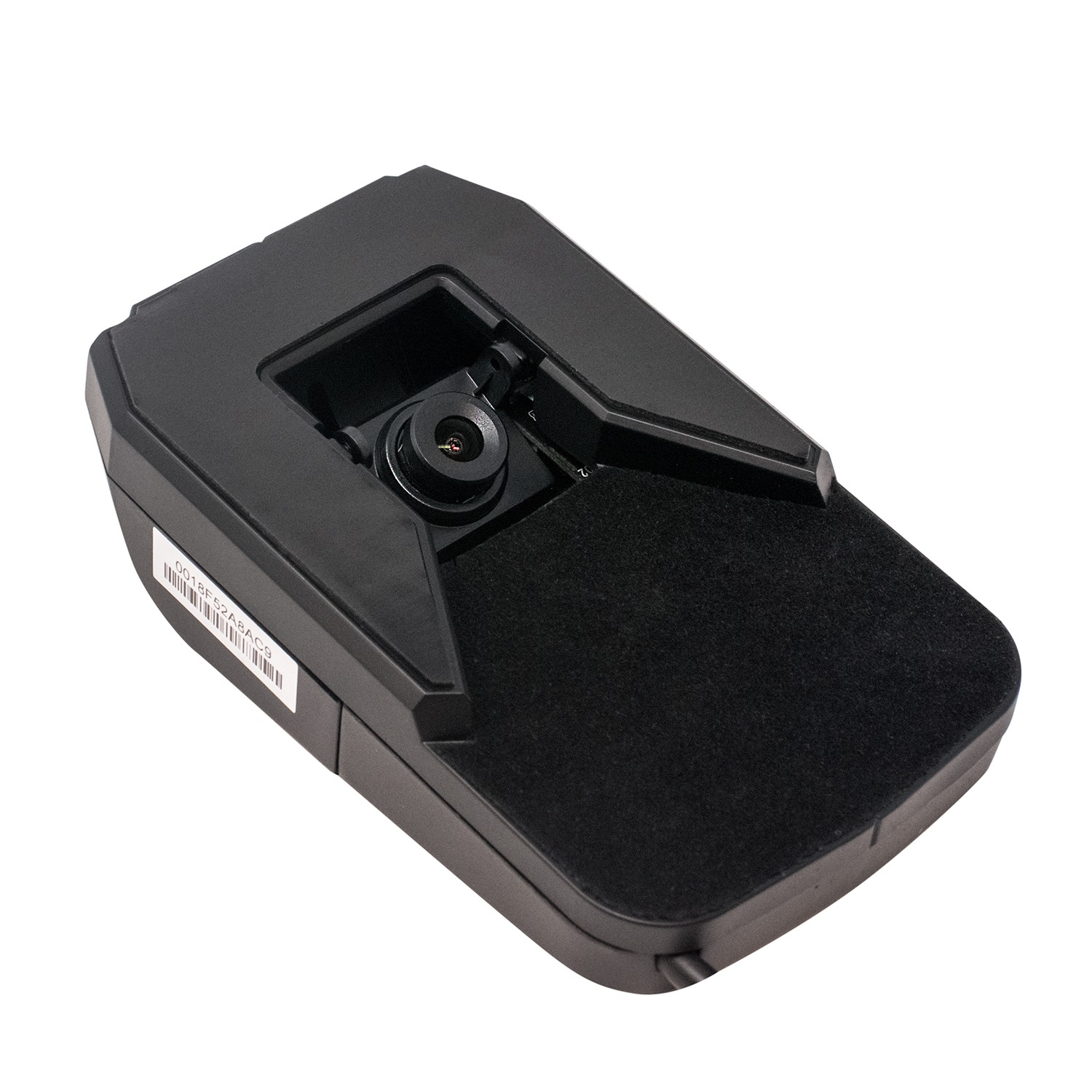

Front-View Cameras

MC352 is a Full HD intelligent IPC (Internet Protocol camera) automatically controlling shutter speed, white balance, contrast, brightness, saturation and other parameters, to produce excellent performance in colour reproduction.

The compact size and light weight allows it to mount directly to the windscreen to reduce reflection and light interference. This is the ideal front-facing camera to capture those accidents and incidents that may occur right in front of your very eyes.

2-megapixel 1/2.8’’ CMOS
1920×1080 resolution
M12 fixed aperture F1.8
0.05Lux (Colour Illumination), F1.2
Supports D-WDR, white balance, gain control
Compact size; light weight
Anti-vibration; vandal-resistant
121.6(L) x 39(H) x 75(W)mm

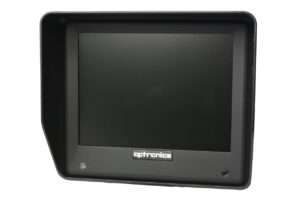

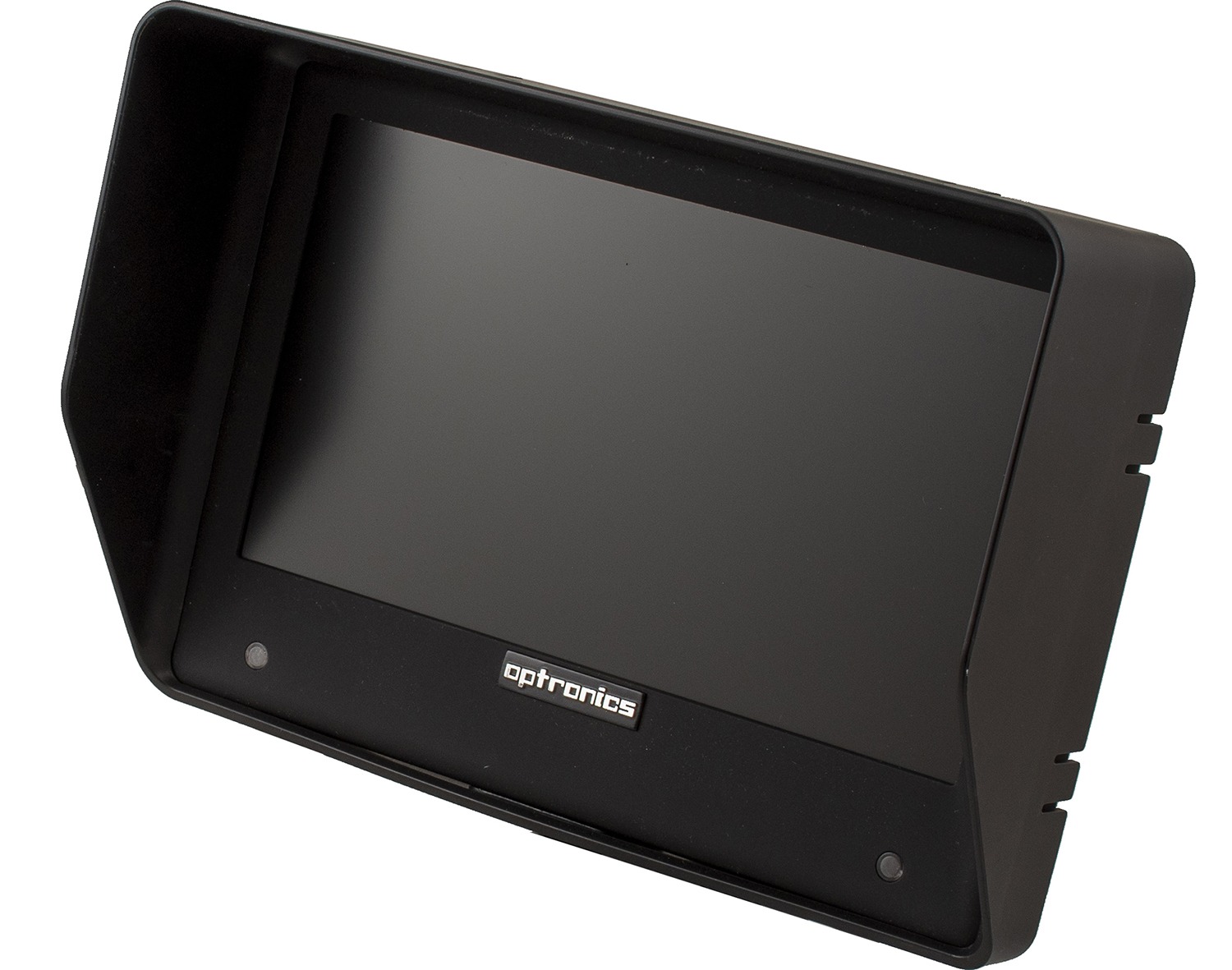

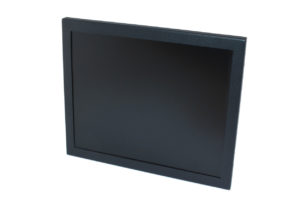

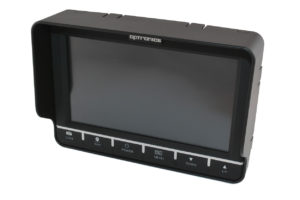

Vehicle Monitors

The Spillard range of monitors really are the operatives eyes, allowing you to see everything around the vehicle – depending on where you mount the cameras that is. From 5.6″ colour screen right up to a mighty 10″ monitor Spillard can cater for all types of vehicle and need, whether it is a small confined digger or a large HGV cab space.

The driver’s vision is paramount in being able to relay and operator on what is seen on the monitor. These monitors deliver crisp, detailed images for driving and backup safety and come with single camera, double or quad camera input options, depending on model type.

5.6”, 7”, 8” and 10” display
Waterproof
Anti-Glare screen
Crystal-clear image quality
in-built satellite navigation
Some models have HDMI, VGA, BNC and RCA connectivity
Suitable for dash or panel mounting
Two channel camera input

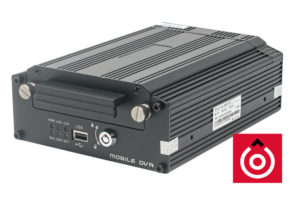

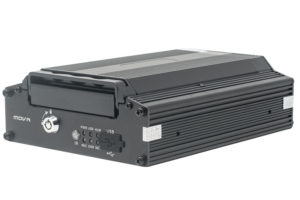

MDVR Or402

Or401 is a 5-channel functional mobile digital video recorder specifically designed for vehicle video surveillance and remote monitoring.

MDVR Or502

Or402 is a 5-channel functional mobile digital video recorder specifically designed for vehicle video surveillance and remote monitoring.

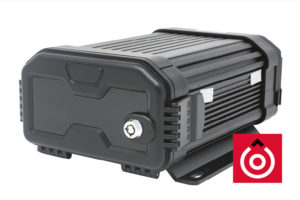

MDVR Or600

The Or600 is a mid-range 6-channel mobile digital video recorder, allowing commercial fleet owners to record and stream live footage from a vehicle.

MDVR Or1200

The Or1200 is a high performance, ruggedised, 12-channel mobile digital video recorder specifically designed for in-vehicle recording

M652 5.6″ rear view monitor

5.6″ Flat screen LCD video monitor for use in vehicle rear view applications.

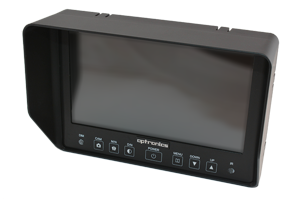

MM701 7″ Waterproof monitor

7” Waterproof video monitor 2 channel camera inputs with triggers for outside on vehicle applications.

MG562 7″ GPS monitor

7-inch colour heavy duty LCD reversing monitor with inbuilt satellite navigation system.

CM700 7″ quad monitor

7” Optonics C-Series TFT Monitor, available with single camera or quad camera inputs.

OM100 10″ heavy duty monitor

Metal housed 10 inch monitor suitable for dash or panel mounting. Equipped with an IPS panel.

MC352 Reversing camera

Reversing camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 10G vibration and 100G shock rating.

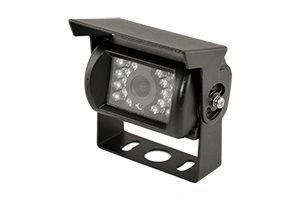

MC259 Reversing camera

This HD rear-view camera is suitable for both day and night use with infrared LED’s and an adjustable sun visor.

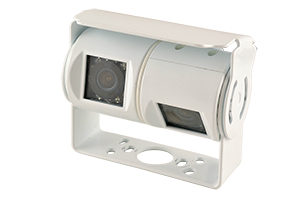

OC200 Dual lens reversing camera

Dual lens rear view camera,95°/120° view angle for reduce the blind spot.

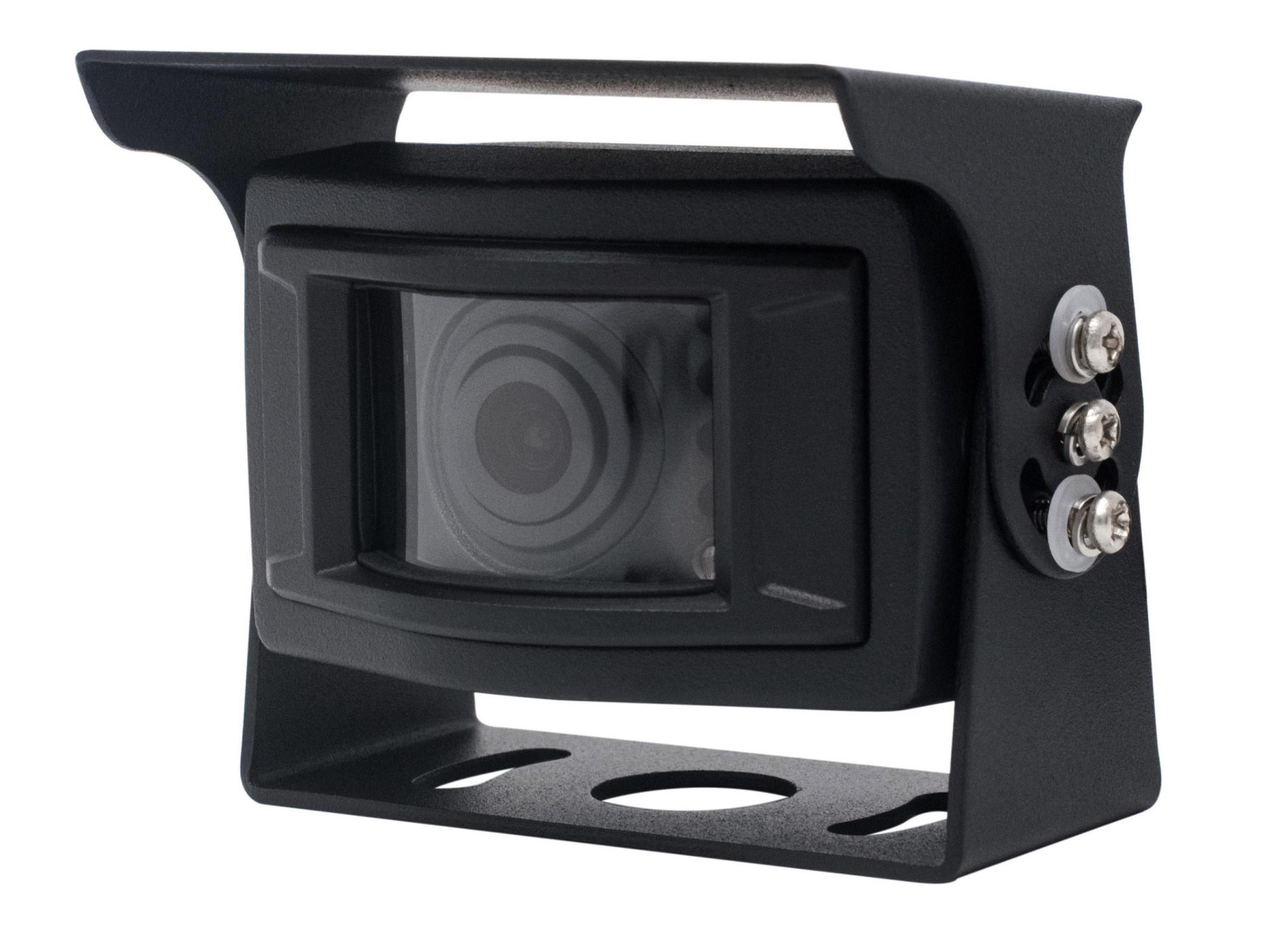

MC279 Reversing infrared camera

With infrared LEDs and an adjustable sun visor, the HD rear-view camera is suitable for both day and night use.

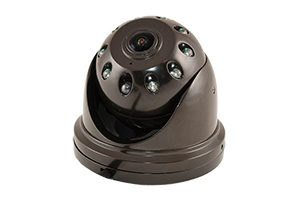

MC180 180 degree vehicle camera

Dramatically Increase Driver’s Vision, with the New Optronics Wide Eye Camera System uses a fish eye camera to produce a 180° view angle allowing a dramatic increase in the driver‘s field of vision.
